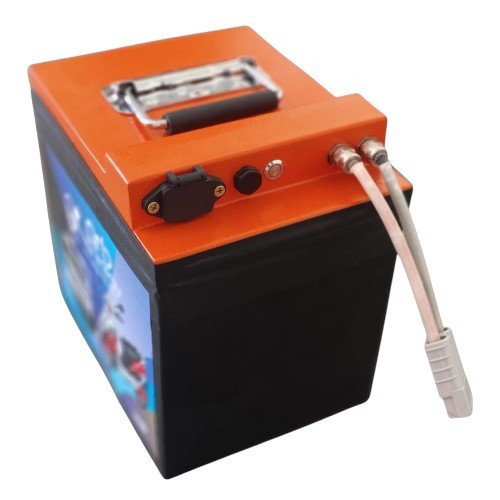

BGES Lithium 60V 31.5Ah NMC 16S7P High-Performance Battery Pack

Technical Product Data Sheet (Model/Batch: 1108a)

The BGES Lithium 60V 31.5Ah Battery Pack is an industrial-strength, high-capacity energy solution utilizing Lithium Nickel Manganese Cobalt Oxide (NMC) chemistry. Configured in a robust 16S7P internal matrix (16 Series connections and 7 Parallel arrays), this advanced pack delivers a nominal 59.2V to 60V with an impressive 31.5Ah of true capacity, pumping out a massive 1,865Wh to 1,900Wh of raw energy storage.

This higher voltage architecture is custom-engineered to power modern heavy-duty electric scooters, high-speed e-bikes, cargo e-rickshaws, and autonomous industrial robots. It ensures faster acceleration, consistent torque retention, and long travel distances on a single charge.

Core Product Highlights

• High-Voltage 16S7P Configuration: Arranged with 16 rows of cells in series to hit a high-speed voltage peak of 67.2V, perfectly driving high-efficiency BLDC motors without sagging under heavy loads.

• Intelligent Integrated Protection BMS: Features an on-board, multi-layered 16S NMC Battery Management System that offers dedicated protection against overcharging, deep discharging, transient short circuits, and thermal overloads.

• Advanced Cell Balancing: Passive/Active thermal and cell balancing infrastructure equalizes individual cell voltages to safely prolong battery lifecycle and maintain uniform discharge curves.

• Ruggedized Structural Frame: Built to absorb shock, drop impacts, and heavy road vibrations common to daily commuting and industrial warehouse routes.

• Heavy-Gauge Quick Connectors: Prefitted with high-grade, low-resistance insulated output wiring and industrial polarized terminal blocks to prevent tracking, sparking, or loose contacts.

Technical Specifications

Primary Applications

Thanks to its 60V power curve, this BGES Lithium pack serves as the perfect drivetrain upgrade or replacement module for:

High-Performance E-Scooters & Commuter Vehicles

Provides a massive speed and range boost to 60V electric scooters, maintaining high torque even when ascending steep grades or carrying dual passengers.

Last-Mile Delivery Cargo Bikes & Rickshaws

Perfect for commercial delivery fleets requiring extended operational uptimes and faster 4–6 hour turnaround charge cycles.

Industrial Robotics & AGVs

Acts as an autonomous, long-lasting energy station for large-scale warehouse automated guided vehicles (AGVs) and heavy industrial sorting robots.
